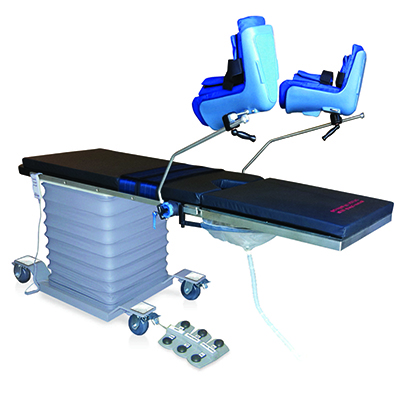

Axia UroMax 3 Surgical Table

Axia UroMax 3 Surgical Table

Specifications

Description

Axia UroMax 3 Features

Axia’s UroMax 3 C-arm surgical tables offer an excellent solution for real-time urological X-ray procedures. The cantilevered, carbon fiber, radiolucent top areas allow full fluoroscopic visualization and unobstructed C-arm positioning. The UroMax 3 has highly versatile movements, options, and accessories. The carbon fiber leg extension accessory can quickly turn your Urology table into a procedure table for pain management and other C-arm guided procedures.

  • Carbon fiber with integral facial cutout section
  • Leg extension easy to remove and very light weight
  • Diving board style for easy C-arm access
  • Large patient capacity (500-lb pound load)
  • A 2” patient high-quality comfort pad
  • Light weight – easy to physically move the table
  • Our 24” wide top eliminates the needs for arm boards
  • Easy patient transfer to table
  • Low height for patient boarding
  • Protective bellows between the base and top
  • Any OR accessory can be rigidly attached to the table top
  • Remove and install OPTIONAL leg extension while fluid catcher is in place

Axia UroMax 3 Specifications

Dimensions

  • Table Length: 55 in (139 cm)
  • Table Width: 24 in (60.9 cm)
  • Table Height: 28 – 38 in (70.1 – 96.5 cm)
  • Weight Capacity: 500 lbs (226.7 kg)
  • Table Weight: 580 lbs (263 kg)
  • H-Shaped Steel Base: 51 x 26 in (129.5 – 66 cm)
  • Mattress: 2 in thick (5 cm)
  • Radiolucent Area: 27 x 24 in (68.5 x 60.9 cm)
  • Table Top: 55 x 24 x 1.62 in (139 x 60 x 4 cm)

Tilts

  • Lateral Tilt: ± 17°
  • Trendelenburg: ± 13°

Power

  • AC Voltage: 120V~
  • Frequency: 60 Hz
  • AC Current: 2.5A
  • Electric Shock Protection: Class I
  • Applied Part Rating: Type B
  • Mode of Operation: 10% Duty Cycle; 1 min on, 9 min off

Environmental

  • Storage Humidity: 0- 92%
  • Operating Humidity: 0- 92%
  • Storage Temperature: 32°F – 104°F (0℃ – 40℃)
  • Operating Temperature: Up to 104°F (40℃)
