Axia SL2

Axia SL2

Specifications

Description

Axia SL2 Features

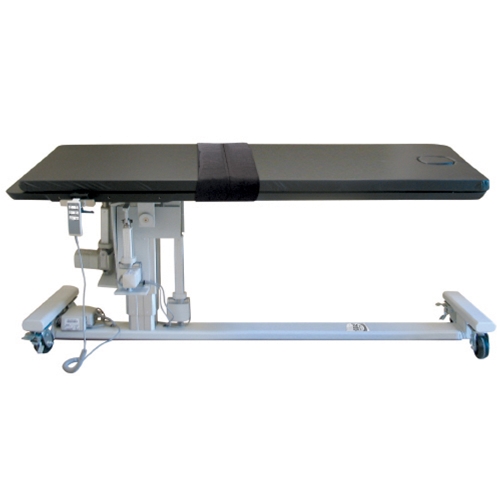

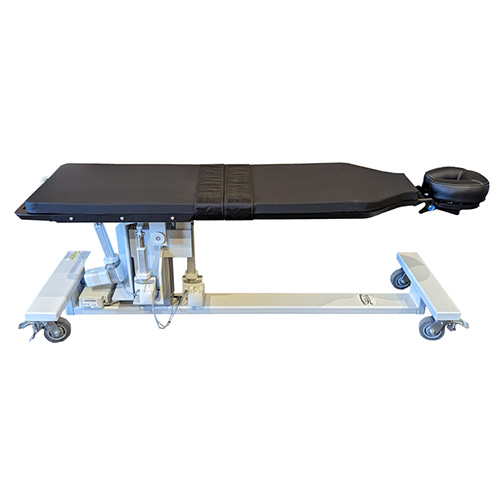

The Axia SL2 imaging table is designed for high patient throughput for surgery centers, pain management, and other multidisciplinary medical facilities. The Axia SL2 features a diving board style for easy C-arm access and a large patient capacity of 500 pounds. The Axia SL2 is a 2 movement table. This table is available with 2 different style table tops; standard and cervical. The cervical top is 22 inches wide with a fully adjustable headrest.

  • Patient Capacity: 500lb (227kg)
  • Tabletop Material: Carbon fiber skin/foam
  • core with integral facial cut-out
  • Radiolucent Area: 56” x 24”
  • Tabletop: 84”L x 24”W
  • Table Dimensions: 86”L x 26”W
  • 5” Castors
  • Mattress: 2” thick (5 cm)
  • Available with a standard or cervical top

Axia SL1 Specifications

Dimensions

  • Table Length: 86 in (218.4 cm)
  • Table Width: 26 in (66 cm)
  • Table Height: 28 – 38 in (71.1-96.5 cm)
  • Weight Capactiy: 500 lbs (226.8 kg)

Tabletop / Imaging Area / General

  • Tabletop (LWH): 84 x 24 x 1.62 in (213.4 x 61 x 4.1 cm)
  • Radiolucent Area (LW): 56 x 24 in (142.2 x 61 cm)
  • Material: Carbon Fiber – skin/foam
  • Casters: 5 in (12.7 cm)
  • Base (LW): I-Shaped Steel – 82 x 26 (208.3 x 66 cm)
  • Hand Control: Activates all Motions
  • Patient Straps: 2
  • Mattress: 2 in (5.1 cm)
  • Facial Cutout: Yes

Power

  • AC Voltage: 120V~
  • Frequency: 60 Hz
  • AC Current: 2.5 A
  • Electric Shock Protection: Class I
  • Applied Part Rating: Type B
  • Mode of Operation: 10% Duty Cycle; 1 min on, 9 minutes off

Movements

  • Height: 28 – 38 in (71.1-96.5 cm)
  • Lateral Tilt: ±17°
