Description

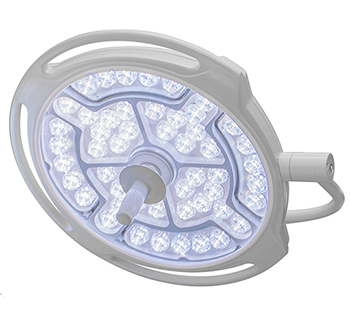

iCE 25 Features

Newest LED technology to the Operating Room. Designed for superior shadow control, increased depth of field and light intensity. They have a CRI of 95 and an R9 greater than 90, allowing surgeons to easily differentiate between tissues. The 4500K color temperature provides a crisp white light, without the color-fringing or color-shifting properties of multicolor LED’s, providing natural color to ensure that the surgical field remains clearly illuminated.

• 25” (64) diameter
• 52 LEDs
• 160,000 lux
• 7.6”-11” (19-28) light pattern
• Easy to Clean
• Thin and Lightweight
• Upgradeable and customizable

iCE 25 Specifications

Performance

• Lighthead Diameter: in (cm) 25(64)
• Light Intensity (Central Luminance): lx (fc) 160,000(12,080)

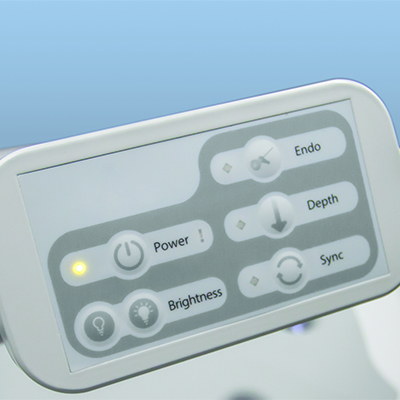

• Brightness Control: % 5-100
• Light Field Diameter: in (cm) 7.6-11 (19-28)
• Depth of Illumination (Ll+L2) at 60%: in (cm) 28.5-48.25 (72-123)
• Depth of Illumination (Ll+L2) at 20%: in (cm) 46.20(117)
• Color Rendering Index (Ra): 95²
• R9: >90
• R13: 97²
• Color Temperature (Standard): K 4,500³

Shadown Dilution

• Single Mask: % 41
• Double Mask: % 41
• Cavity: % 100
• Single Mask with Cavity: % 39
• Double Mask with Cavity: % 39

General

• Number of LED’s (main): 52
• Number of Other LED’s: 208
• LED Service Life: hours 50,000
• Total Radiant Power at Max Intensity: W/m2 519
• Power Consumption at Lighthead: w @ 24 VDC 150
• Electricity (VAC): Universal VAC

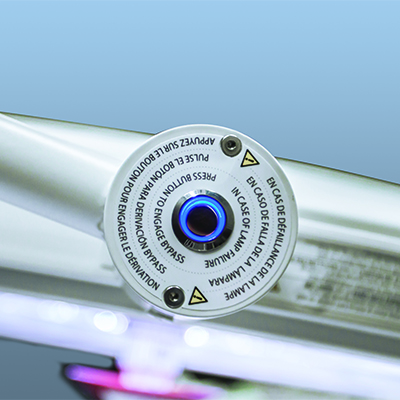

• Emergency Bypass: Yes
• Mounting Options: Ceiling, Wall
• Certificates: ETL, FDA
