Description

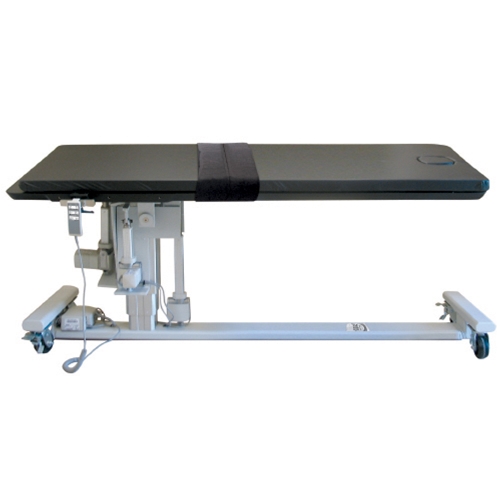

Axia SL1 Imaging Table Features
The Axia SL1 was designed for high patient throughput for surgery centers, pain management, and other multidisciplinary medical facilities. The SL1 is a mobile imaging table which is intended to support a 500 pound patient. This Axia imaging table is intended to be used with mobile x-ray for minimally invasive procedures. This table is available with 2 different style table tops; standard and cervical. The cervical top is 22 inches wide with a fully adjustable headrest.
- Carbon fiber, diving board style for easy C-arm access
- Adjustable height 28″ – 38″
- Large patient capacity – high-end actuator motor supports 500-pound loads
- An 84″ length can accommodate even the tallest of patients
- A 24″ top eliminates the need for arm boards
- Two-inch thick, high quality patient comfort pad
- Facial cut-out for prone procedures

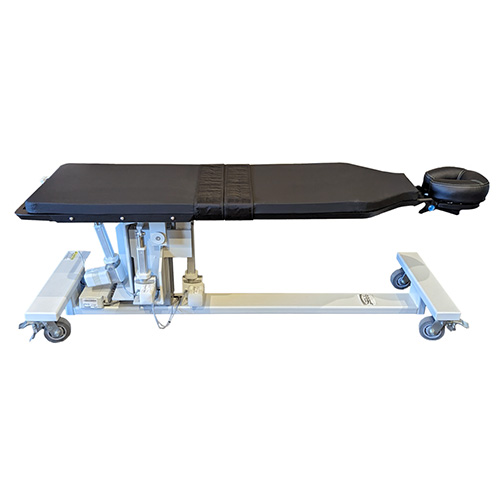

- Available with a standard or cervical top
Axia SL1 Imaging Table Specifications
Dimensions
- Height (Adjustable): 28 – 38 In (71.1 – 96.5 cm)
- Width: 24 In (61 cm)
- Length: 86 In (218.4 cm)
- Weight: 375 lbs (170 kg)
Tabletop
- Height: 2 In (5 cm)
- Width: 24 In (61 cm)
- Length: 84 In (213.4 cm)
- Material: Carbon fiber skin/foam core with integral facial cut-out
Radiolucent Area
- Width: 24 In (61 cm)
- Length: 56 In (142.2 cm)
General
- Hand Control: Activates all motions
- Base: I-Shaped with Epoxy Finish
- Castors: 5 In (12.7 cm) with full swivel & wheel lock
- Patient Straps: 2
